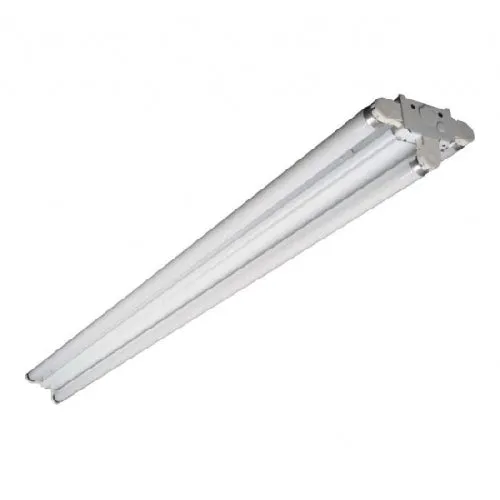

Advantage Environmental Lighting SMKD Side Mount Knockout Strip Luminaire

The SMKD Series is a Sidemount Knockdown Fluorescent Strip available in 1’ thru 8’ body lengths. It was designed for surface or suspended mounting applications.

APPLICATIONS

The SMKD Series of Narrow Fluorescent Strips were designed to be high quaility, energy effiecient fluorescent fixtures for use in commercial applications, offices, government facilities, schools, and public areas.

CONSTRUCTION

The fixture is contructed of a heavy gauge cold rolled steel body.

OPTICAL SYSTEM

White polyester polymer finish with a high reflectivity. Multiple lamp configurations.

ELECTRICAL SYSTEM

Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD. Standard 120-277V electronic program start ballasts for T5 lamping, ≤10% THD. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.

MOUNTING

Surface or pendant mount, individually or in continuous rows. Sufficient knockouts are provided. Double KO access on 4 ft and longer to facilitate wiring of units for multiple ballast configurations.

LISTINGS

UL and cUL Listed. Damp location rated.

WARRANTY

1-Year Limited Warranty.
