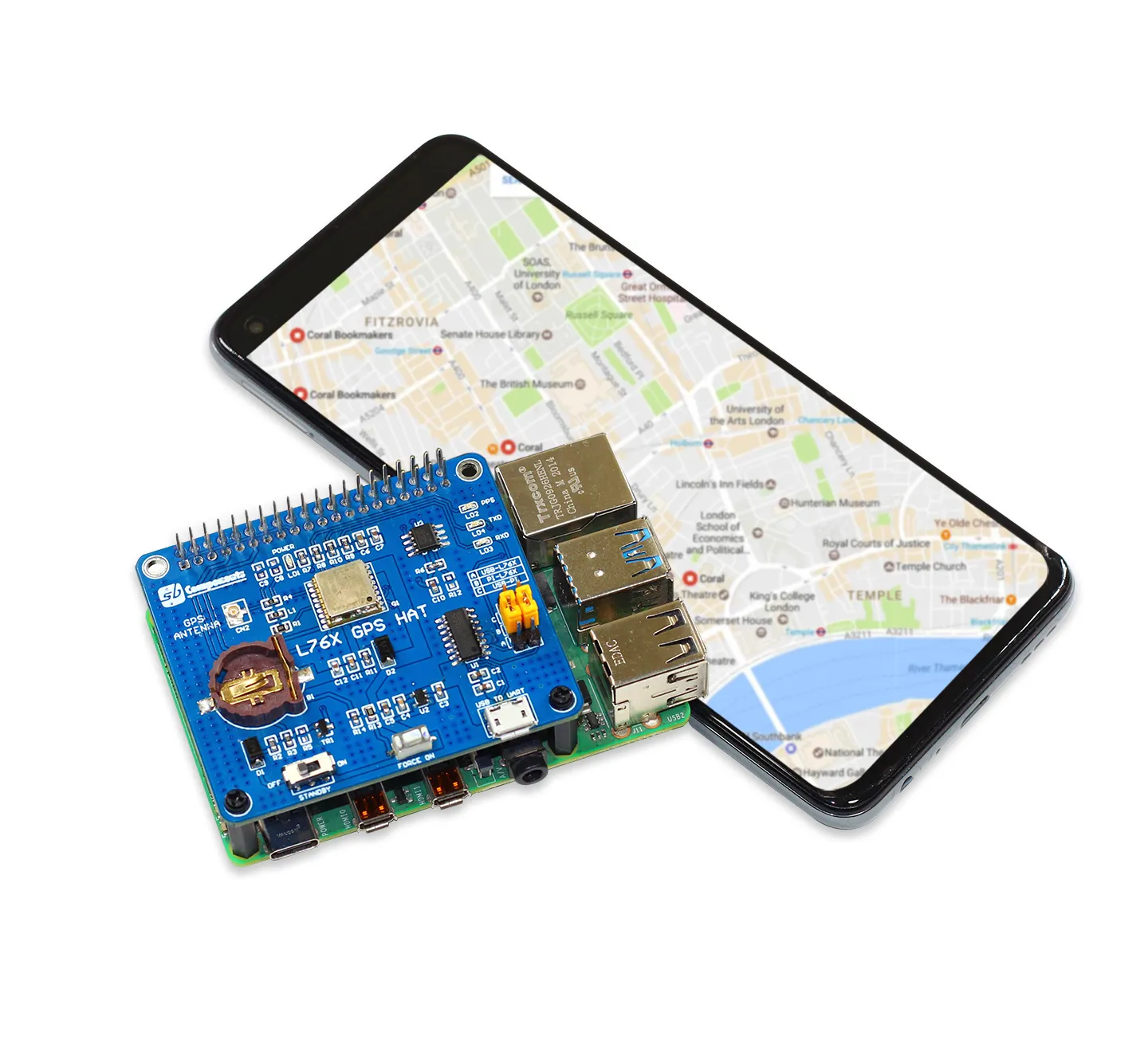

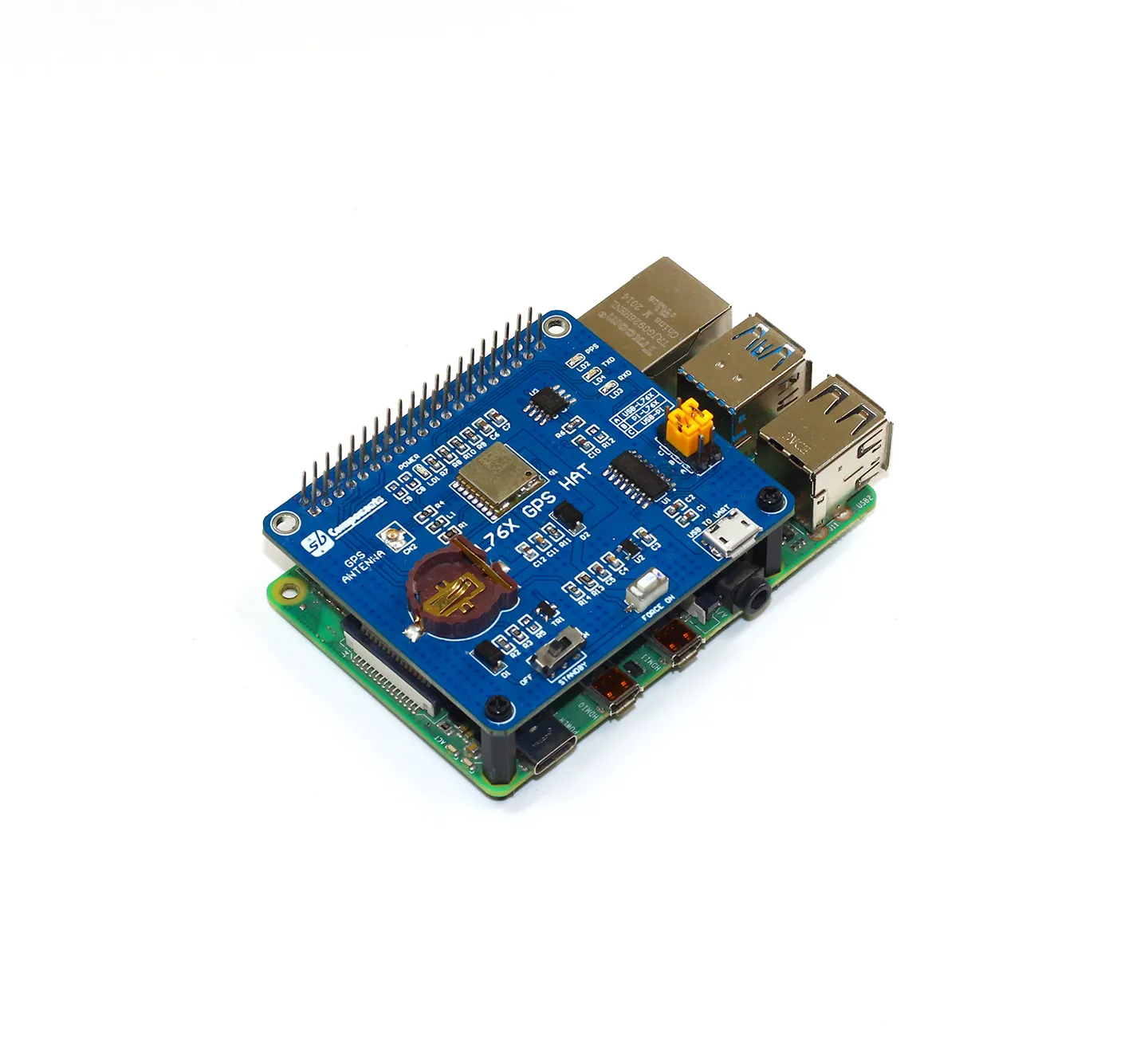

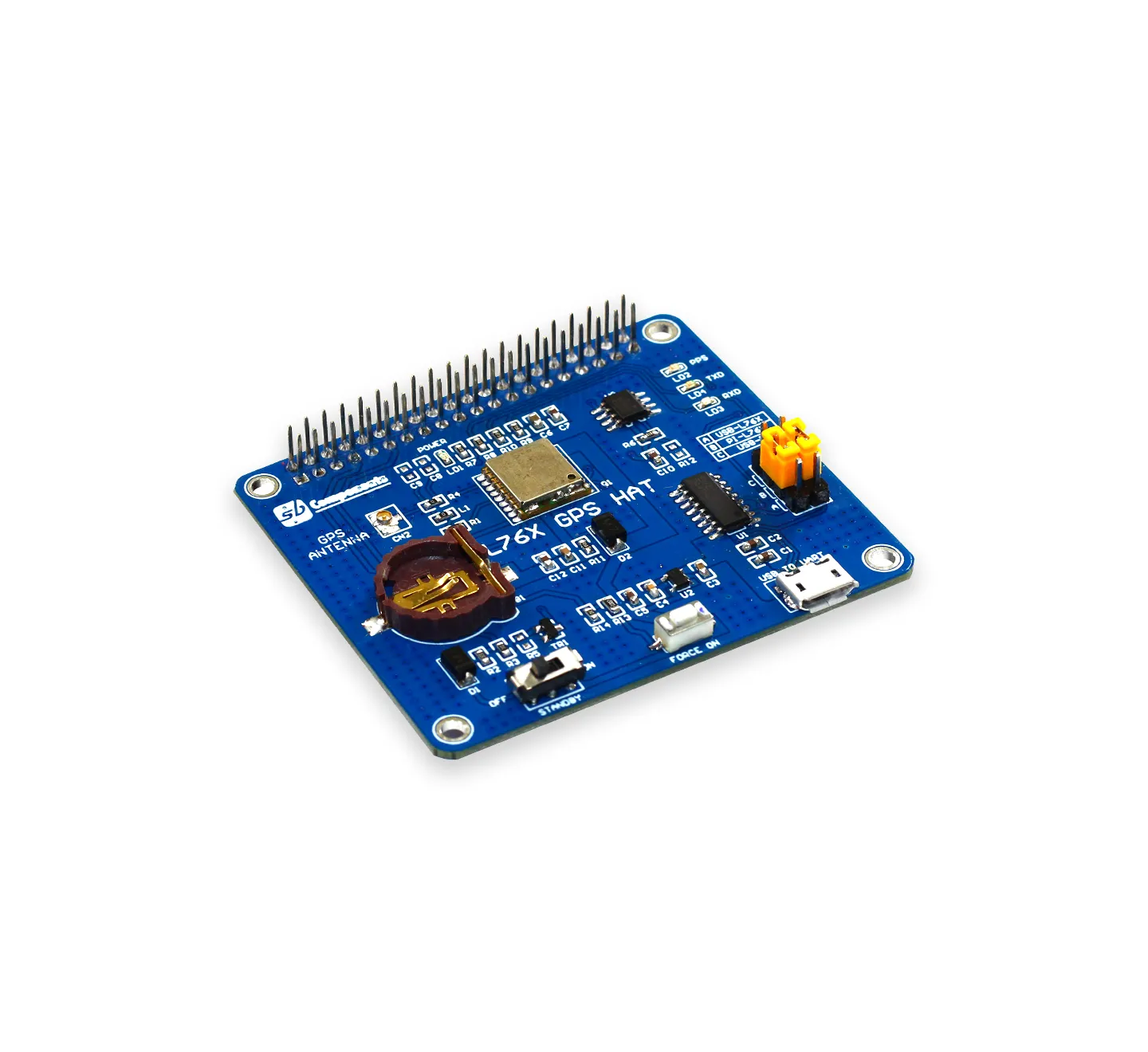

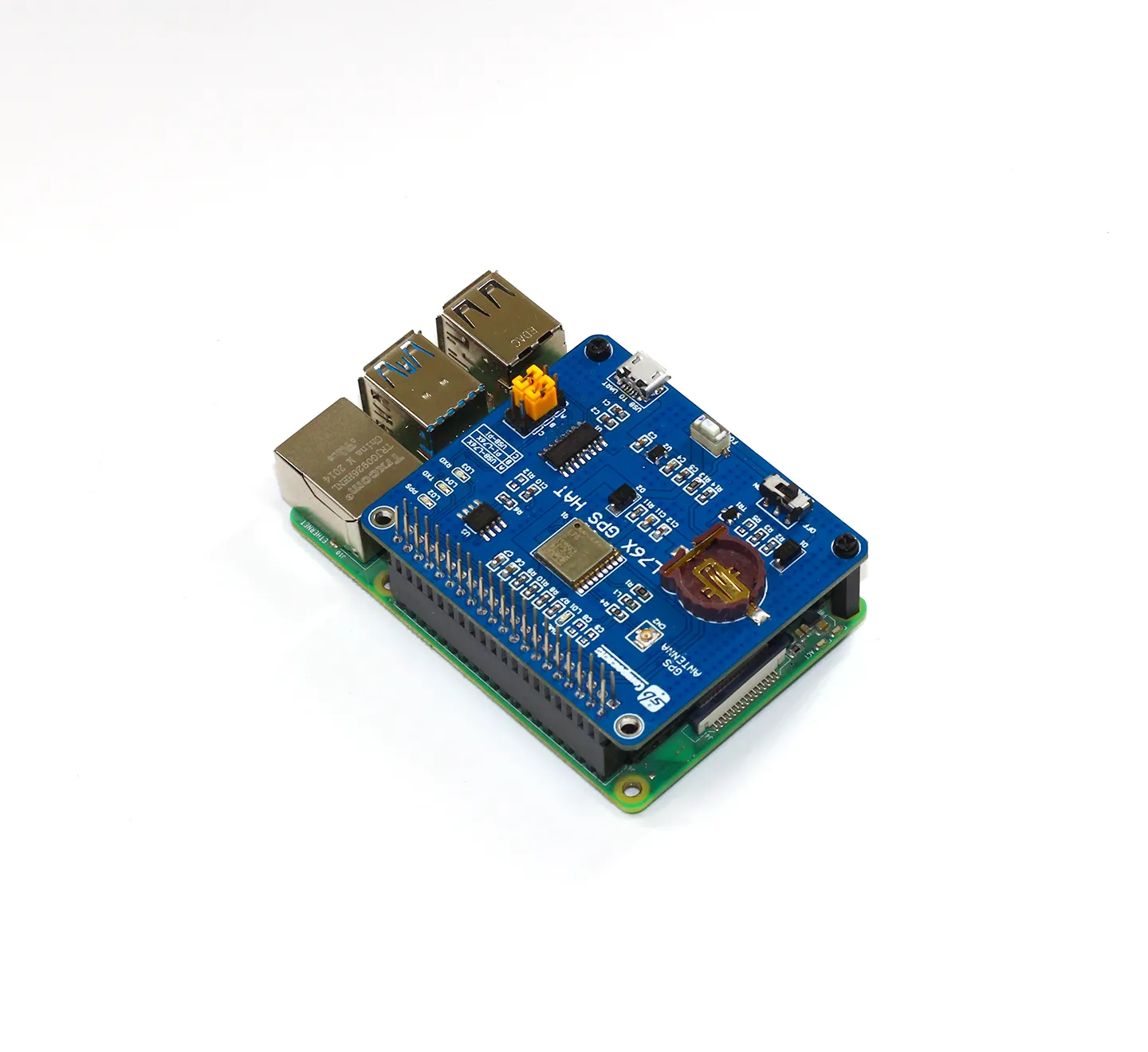

The extremely compact and powerful GNSS module GPS HAT is a concurrent receiver module that integrates GPS with the BeiDou system. It's pin-to-pin compatible with 's GNSS module L76 and can receive both GPS and open service L1 signals at the same time. GPS HAT can acquire and track any mix of GPS and BeiDou signals thanks to its 33 tracking channels, 99 acquisition channels, and 210 PRN channels. When compared to utilizing simply GPS, enabling both GPS and BeiDou doubles the number of visible satellites, reduces the time to first fix, and improves positioning accuracy, especially in congested urban areas.
GPS HAT provides the maximum performance and fully fulfills the industrial requirement by combining modern AGPS dubbed EASYTM (Embedded Assist System) with established AlwaysLocateTM technology. LOCUS, an optional feature of the embedded logger function, enables the GPS HAT to log position data to internal flash memory at default intervals of 15 seconds, providing typically more than 16 hours of log space without additional expense. It is suited for automotive, industrial PDA, consumer, and industrial applications because of its superior performance. Because of its extremely low power consumption, it can be used in power-sensitive devices, such as portable gadgets.
- UART Baudrate 4800 ~ 115200bps (9600 by Default)
- Onboard 4 x LED, Battery holder support CR1220 battery, EEPROM
- Support DGPS, SBAS, (WAAS / EGNOS / MSAS / GAGAN)
- High sensitivity, -163dBm @ Tracking, -148dBm @Aquisition
- L76 GNSS Module
